VX SMART Controller & Wallbox inc 2 x NOVA TX4

Welcome To Axume Marketplace

Centurion
VX SMART Controller & Wallbox inc 2 x NOVA TX4
Get 0% cash back
₦630,224.15
Availability:
In Stock
Condition:
New

Shipping:
Quantity:
1 in stock
Total:
Will be calculated after you select all properties

SPECIFICATIONS OF THE VANTAGE VX SMART CONTROLLER:

Maximum motor current per channel15A (fused)
Maximum input voltage14.4V DC
Standby current draw51mA (2)
Maximum solenoid current draw3A DC / AC (10 Seconds) (1)
Maximum axillary output current3A (Resettable Electronic Fuse)
Collision detectionCurrent sense and optical
Position and trajectory controlOptical
Temperature range-20°C to +60°C
Onboard receiver typeCode-hopping multichannel
Receiver code storage capacity1500 transmitters
Receiver frequency433MHZ
Product Dimensions
Product Weight
Packaging Dimensions
Mass of unit packed
Warranty24 Months limited Manufacturer's warranty



Additional information pertaining to the Vantage Vx SMART Controller:
1. Limited by charger, ensure that load does not prevent battery from fully charging.
Continuous current draw should ideally be less than 500mA but must not exceed 1A.
2. Operators connected, no ancillaries fitted



SPECIFICATIONS OF THE POWER SUPPLY:

Nominal input voltage90V - 240V AC ±10% @ 50/60Hz
AC current draw (maximum)170mA
Temperature range-20°C to +60°C
Battery charger output current (dependent on PSU input voltage)90V AC input: 1.2A @ 13.8V | 240V AC input: 1.8A @ 13.8V



Warnings and Limitations on the Vx SMART Controller:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.

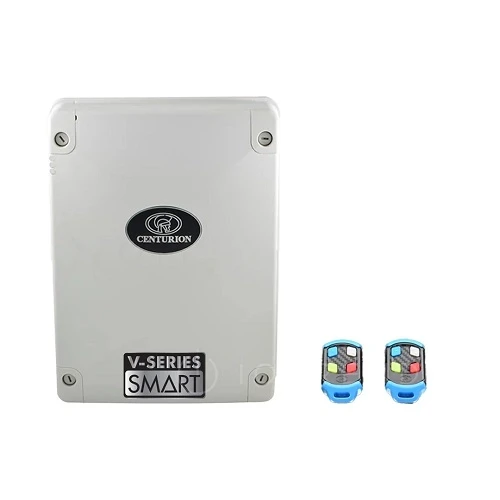

WHAT’S IN THE BOX:
1 x Centurion Vantage Vx SMART Controller and Charger
1 x Vx SMART Wall Box
2 x Centurion Nova 4 Button Remotes




Technical Details

Seller SKU: D27
Condition: New
Manufacturer: Centurion
Availability: In Stock
Minimum order quantity: 1
Date first listed on Axume : Jan 7, 2025

SPECIFICATIONS OF THE VANTAGE VX SMART CONTROLLER:

Maximum motor current per channel15A (fused)
Maximum input voltage14.4V DC
Standby current draw51mA (2)
Maximum solenoid current draw3A DC / AC (10 Seconds) (1)
Maximum axillary output current3A (Resettable Electronic Fuse)
Collision detectionCurrent sense and optical
Position and trajectory controlOptical
Temperature range-20°C to +60°C
Onboard receiver typeCode-hopping multichannel
Receiver code storage capacity1500 transmitters
Receiver frequency433MHZ
Product Dimensions
Product Weight
Packaging Dimensions
Mass of unit packed
Warranty24 Months limited Manufacturer's warranty



Additional information pertaining to the Vantage Vx SMART Controller:
1. Limited by charger, ensure that load does not prevent battery from fully charging.
Continuous current draw should ideally be less than 500mA but must not exceed 1A.
2. Operators connected, no ancillaries fitted



SPECIFICATIONS OF THE POWER SUPPLY:

Nominal input voltage90V - 240V AC ±10% @ 50/60Hz
AC current draw (maximum)170mA
Temperature range-20°C to +60°C
Battery charger output current (dependent on PSU input voltage)90V AC input: 1.2A @ 13.8V | 240V AC input: 1.8A @ 13.8V



Warnings and Limitations on the Vx SMART Controller:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.


WHAT’S IN THE BOX:
1 x Centurion Vantage Vx SMART Controller and Charger
1 x Vx SMART Wall Box
2 x Centurion Nova 4 Button Remotes
