Name: R6 Standard Torque Rotary Arm Operator
Brand: Centurion
SKU: D30
Price: 1210231.25 NGN
Availability: InStock

Centurion

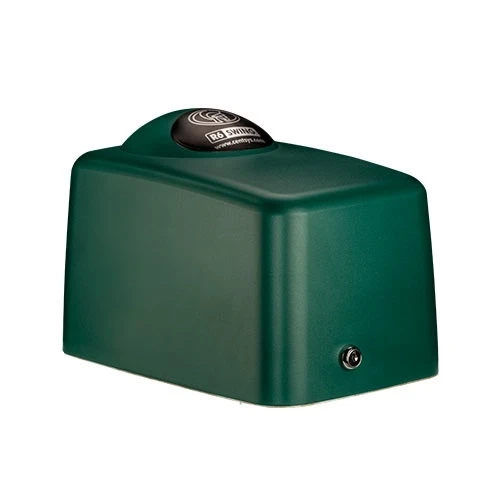

R6 Standard Torque Rotary Arm Operator

Get 0% cash back

₦1,210,231.25

Availability:

In Stock

Condition:

New

Add to wishlist

Contact Seller

Shipping:

to Ohio

Quantity:

1 in stock

Total:

Will be calculated after you select all properties

Buy Now Add to Cart

Sold by Quick View

Axume Store

TECHNICAL SPECIFICATIONS	R6 SWING
	Input voltage	90V - 240V AC 1
	Motor voltage	12V DC
	Current Consumption (mains)
	CP13E	80mA (90V - 240V AC +/-10% @ 50Hz1)
	CP84SM	170mA (90V - 240V AC +/-10% @ 50Hz1)
	Maximum DC Current Draw	16A
	Maximum Output Torque
	Standard-torque operator	300Nm
	High-torque operator	390Nm
	Power Supply3
	Domestic	0.8A CP13E, 7.2Ah Battery
	Light-industrial	1.8A CP84SM, 7.2Ah Battery
	Industrial	1.8A CP84SM, 33Ah Battery

Maximum Daily Operations	Mains present		Back-up2
	Double Leaf	Single Leaf	Double Leaf	Single Leaf
Domestic	20	30	20	30
Light-industrial	250	250	40	60
Industrial	250	250	250	250

Maximum Daily Continuous Operations	Mains present	Mains present
	Double leaf	Single leaf
Domestic	20	30
Light-industrial	50	50
Industrial	100	100

	SPECIFICATIONS CONTINUE
	Typical Gate Operating Time: Standard-torque operator / High-torque operator	12s / 15s
	Mass of Motor Kit4 (excluding pedestal or wall bracket)	15kg
	Collision Sensitivity	Electronic - Adjustable
	Temperature Range	-15°C to +50°C
	Housing Protection	IP55

1: R6 Swing gate motor can operate off a solar supply, please consult Centurion Systems (Pty) Ltd for assistance.
2: These values are based on fully charged batteries, derate accordingly based on connected ancillaries.
3: Choose appropriate variation based on site requirements.
4: The weight of an operator kit (regardless of Master or Slave).

GATE SPECIFICATIONS

R6 Standard-Torque Operator


Gate Length (m)	1.5	2	2.5	32	3.52	42	4.52	52
Gate Height (m)	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Max Mass (Kg)	500	500	480	330	240	185	145	120
Allowable Wind Speed For 25% Clad (Km/h)1	114	84.7	67.3	56.9	49.2	43.2	38.6	34.8
Allowable Wind Speed For 100% Clad (Km/h)1	57	42.4	33.6	28.5	24.6	21.6	19.3	17.4

1: No wind opening time ~ 12s. Gate opening and closing times will increase as wind speed increases.
2: Fit an electric gate lock if the leaf width is greater than 3 metres.

R6 High-Torque Operator


Gate Length (m)	1.5	2	2.5	32	3.52	42	4.52	52
Gate Height (m)	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Max Mass (Kg)	750	750	620	430	315	240	190	155
Allowable Wind Speed For 25% Clad (Km/h)1	128.4	95	76.3	64.6	55.9	49.2	43.9	39.6
Allowable Wind Speed For 100% Clad (Km/h)1	64.2	47.5	38.1	32.3	27.9	24.6	21.9	19.8

1: No wind opening time ~ 15s. Gate opening and closing times will increase as wind speed increases.
2: Fit an electric gate lock if the leaf width is greater than 3 metres.

Technical Details

Seller SKU:	D30
Condition:	New
Manufacturer:	Centurion
Availability:	In Stock
Minimum order quantity:	1
Date first listed on Axume :	Jan 7, 2025

TECHNICAL SPECIFICATIONS	R6 SWING
	Input voltage	90V - 240V AC 1
	Motor voltage	12V DC
	Current Consumption (mains)
	CP13E	80mA (90V - 240V AC +/-10% @ 50Hz1)
	CP84SM	170mA (90V - 240V AC +/-10% @ 50Hz1)
	Maximum DC Current Draw	16A
	Maximum Output Torque
	Standard-torque operator	300Nm
	High-torque operator	390Nm
	Power Supply3
	Domestic	0.8A CP13E, 7.2Ah Battery
	Light-industrial	1.8A CP84SM, 7.2Ah Battery
	Industrial	1.8A CP84SM, 33Ah Battery

Maximum Daily Operations	Mains present		Back-up2
	Double Leaf	Single Leaf	Double Leaf	Single Leaf
Domestic	20	30	20	30
Light-industrial	250	250	40	60
Industrial	250	250	250	250

Maximum Daily Continuous Operations	Mains present	Mains present
	Double leaf	Single leaf
Domestic	20	30
Light-industrial	50	50
Industrial	100	100

	SPECIFICATIONS CONTINUE
	Typical Gate Operating Time: Standard-torque operator / High-torque operator	12s / 15s
	Mass of Motor Kit4 (excluding pedestal or wall bracket)	15kg
	Collision Sensitivity	Electronic - Adjustable
	Temperature Range	-15°C to +50°C
	Housing Protection	IP55

GATE SPECIFICATIONS

R6 Standard-Torque Operator


Gate Length (m)	1.5	2	2.5	32	3.52	42	4.52	52
Gate Height (m)	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Max Mass (Kg)	500	500	480	330	240	185	145	120
Allowable Wind Speed For 25% Clad (Km/h)1	114	84.7	67.3	56.9	49.2	43.2	38.6	34.8
Allowable Wind Speed For 100% Clad (Km/h)1	57	42.4	33.6	28.5	24.6	21.6	19.3	17.4

1: No wind opening time ~ 12s. Gate opening and closing times will increase as wind speed increases.
2: Fit an electric gate lock if the leaf width is greater than 3 metres.

R6 High-Torque Operator


Gate Length (m)	1.5	2	2.5	32	3.52	42	4.52	52
Gate Height (m)	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Max Mass (Kg)	750	750	620	430	315	240	190	155
Allowable Wind Speed For 25% Clad (Km/h)1	128.4	95	76.3	64.6	55.9	49.2	43.9	39.6
Allowable Wind Speed For 100% Clad (Km/h)1	64.2	47.5	38.1	32.3	27.9	24.6	21.9	19.8

1: No wind opening time ~ 15s. Gate opening and closing times will increase as wind speed increases.
2: Fit an electric gate lock if the leaf width is greater than 3 metres.
