Key Features

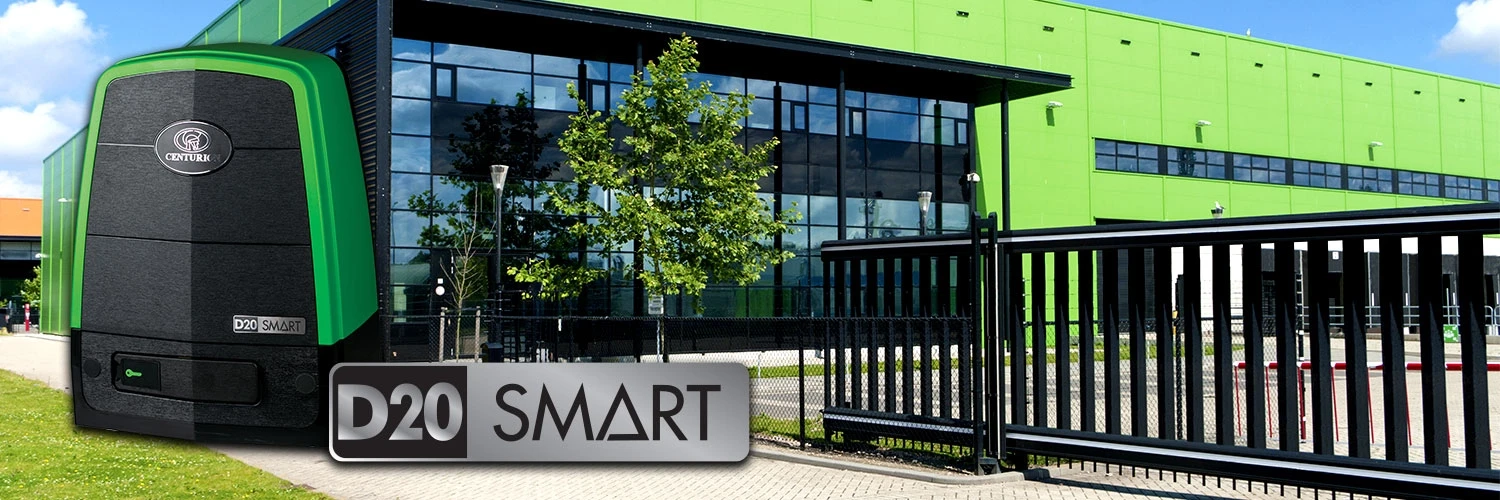

- When it’s time to beef up security, you need real muscle, the kind that only the number one in access automation can deliver. Introducing the brand new D20 SMART industrial sliding gate motor. If your high-volume site calls for the kind of security that never backs down even when it’s pushed beyond the limits of other gate motors, make the intelligent choice and get the D20 SMART.
Technical Specifications:
| Input voltage | 90V - 240V AC +/-10% @ 50Hz1 | |
| Current consumption (Mains) | 250mA | |
| Battery charger current output | 1.8A @ 27.4V +/-1% | |
| Maximum number of operations per day | 750.2, 5 | |
| Duty cycle - Mains present2, 3 | 45% | |
| Motor voltage | 24V DC | |
| Motor power supply | Battery-driven (Standard Capacity - 2x 7.2Ah)3 | |
| Current consumption (motor at rated load) | 9A | |
| Input / Output sink currents (Max accessory current draw) | ||
| I/O 1-4 | 100mA (12/24V) | |
| I/O 5 and 6 | 3A (12/24V) 10sec Pulse | |
| Motor push force - starting | 52kgf | |
| Motor push force - rated | 39kgf | |
| Gate mass - maximum | 2000kg | |
| Gate length - maximum | 25m | |
| Gate speed (varies with load)2, 5 | Up to 18m/min3 | |
| Manual Override | Lockable lever with key release | |
| Drive Pinion | 13T Module 4 | |
| Operations in standby with 2x 7.2Ah batteries | Power Saving (15m/min 20kgf) | Normal (18m/min 20kgf) | |
| Half day2, 3, 4 | 101 | 55 | |
| Full day2, 3, 4 | 80 | 45 | |
| Collision Sensing | Electronic | |
| Operating temperature range | -15°C to +50°C | |
| Onboard receiver type | CENTURION rolling code (Keeloq encryption) multichannel | |
| Receiver code storage capacity | 1500 Remotes6 | |
| Receiver frequency | 433.92MHz | |
| Degree of protection | IP54 | |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 13Kg | |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 350mm wide x 282mm deep x 470mm high |
1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the
requirements of individual installations
5. Can increase battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
Technical Details
| Brand: | CENTURION D20 SMART |
|---|---|
| Part Number: | 0101 |
| Seller SKU: | 0102 |
| Condition: | New |
| Manufacturer: | Centurion |
| Origin: | South Africa |
| Availability: | In Stock |
| Minimum order quantity: | 1 |
| Shipping weight: | 1300.00 g |
| Date first listed on Axume : | Nov 28, 2024 |
Technical Specifications:
| Input voltage | 90V - 240V AC +/-10% @ 50Hz1 | |
| Current consumption (Mains) | 250mA | |
| Battery charger current output | 1.8A @ 27.4V +/-1% | |
| Maximum number of operations per day | 750.2, 5 | |
| Duty cycle - Mains present2, 3 | 45% | |
| Motor voltage | 24V DC | |
| Motor power supply | Battery-driven (Standard Capacity - 2x 7.2Ah)3 | |
| Current consumption (motor at rated load) | 9A | |
| Input / Output sink currents (Max accessory current draw) | ||
| I/O 1-4 | 100mA (12/24V) | |
| I/O 5 and 6 | 3A (12/24V) 10sec Pulse | |
| Motor push force - starting | 52kgf | |
| Motor push force - rated | 39kgf | |
| Gate mass - maximum | 2000kg | |
| Gate length - maximum | 25m | |
| Gate speed (varies with load)2, 5 | Up to 18m/min3 | |
| Manual Override | Lockable lever with key release | |
| Drive Pinion | 13T Module 4 | |
| Operations in standby with 2x 7.2Ah batteries | Power Saving (15m/min 20kgf) | Normal (18m/min 20kgf) | |
| Half day2, 3, 4 | 101 | 55 | |
| Full day2, 3, 4 | 80 | 45 | |
| Collision Sensing | Electronic | |
| Operating temperature range | -15°C to +50°C | |
| Onboard receiver type | CENTURION rolling code (Keeloq encryption) multichannel | |
| Receiver code storage capacity | 1500 Remotes6 | |
| Receiver frequency | 433.92MHz | |
| Degree of protection | IP54 | |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 13Kg | |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 350mm wide x 282mm deep x 470mm high |
1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the
requirements of individual installations
5. Can increase battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
