Centurion

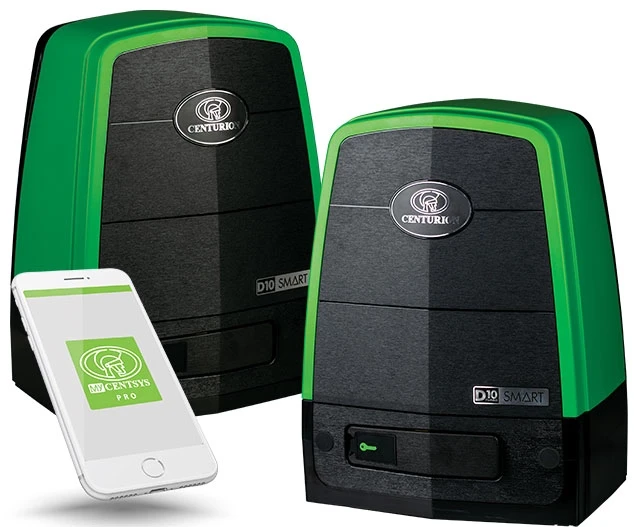

D10 SMART industrial and commercial sliding gate motor
₦1.7M
Availability:
In Stock
Condition:
New
Main features:
- Taking intelligence to the next level – a machine crafted for excellence and perfected through innovation
- Pushing the limits of technology to bring you the ultimate in strength, security and endurance – suitable for gates weighing up to 1t with 750 daily operations
- SMART hardware and SMART connectivity provide the best experience for installers
- Intelligent theft and break-in protection with an integral vibration sensor and patented theft-deterrent cage
- More space and dedicated accessory tray for complementary solutions such as GSM devices
- World-class reliability with a sealed gearbox and improved, more secure manual release mechanism
- Die-cast aluminium gearbox coupled with a high-torque DC motor built for pure power and performance
- Uncompromising security, uninterrupted convenience with 24V battery backup
- Instant access to advanced, in-app diagnostics and logs, monitoring system health in real time
- Accurate and safe position control incorporating reliable Hall Effect technology
- Improved wire routing
- SMART universal controller – compatible with all CENTURION SMART solutions
Technical Specifications:
| D10-SMART | D10 TURBO-SMART | ||
|---|---|---|---|
| Input voltage | 90V - 240V AC +/-10% @ 50Hz 1 | 90V - 240V AC +/-10% @ 50Hz1 | |
| Current consumption (Mains) | 250mA | 250mA | |
| Battery charger current output | 1.8A @ 27.4V +/-1% | 1.8A @ 27.4V +/-1% | |
| Maximum number of operations per day | 750 3, 6 | 750 3, 6 | |
| Duty cycle - Mains present2, 3 | 45% | 25% | |
| Motor voltage | 24V DC | 24V DC | |
| Motor power supply | Battery-driven (Standard Capacity - 2x 12V 7.2Ah) | Battery-driven (Standard Capacity - 2x 12V 7.2Ah) | |
| Current consumption (motor at rated load) | 8A | 10A | |
| Input / Output sink currents (Max accessory current draw) | |||
| I/O 1-4 | 100mA (12/24V) | 100mA (12/24V) | |
| I/O 5 and 6 | 3A (12/24V) 10sec Pulse | 3A (12/24V) 10sec Pulse | |
| Motor push force - starting | 40Kgf | 24Kgf | |
| Motor push force - rated | 30Kgf | 18kgf | |
| Gate mass - maximum | 1000Kg | 250kg8 | |
| Gate length - maximum | 50m | 50m | |
| Gate speed (varies with load)4 | Up to 26m/min4 | Up to 45m/min8 | |
| Manual Override | Lockable with key release | Lockable with key release | |
| Drive Pinion | 17T Module 4 | 20T Module 4 | |
| Operations in standby with 2x 7Ah batteries | Power saving (15m/min 15kgf) Normal (26m/min 15kgf) | Power saving (15m/min 9kgf) Normal (45m/min 9kgf) | |
| Half day2, 5, 6 | 118 | 63 | 189 | 130 | |
| Full day2, 5, 6 | 93 | 50 | 150 | 104 | |
| Collision Sensing | Electronic | Electronic | |
| Operating temperature range | -15°C to +50°C | -15°C to +50°C | |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete | Code-hopping multichannel receiver with selective add and delete | |
| Receiver code storage capacity | 1500 Remotes7 | 1500 Remotes7 | |
| Receiver frequency | 433.92MHz | 433.92MHz | |
| Degree of protection | IP54 | IP54 | |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 13Kg | 13.5Kg | |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 350mm wide x 282mm deep x 470mm high | 350mm wide x 282mm deep x 470mm high |
- Can operate off a solar supply, consult your local dealer for assistance
- Based on 25°C ambient temperature and unit not in direct sunlight
- Based on a motor push force of less than 50% of rated (Starting and Running forces)
- Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
- Can increase battery capacity for longer standby times
- Based on 4m gate, excluding all accessories
- Multiple buttons per remote can be used
- Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses
Technical Details
| Model number: | D10 SMART |
|---|---|
| Seller SKU: | 0100 |
| Condition: | New |
| Manufacturer: | Centurion |
| Origin: | South Africa |
| Availability: | In Stock |
| Minimum order quantity: | 1 |
| Date first listed on Axume : | Nov 27, 2024 |
Technical Specifications:
| D10-SMART | D10 TURBO-SMART | ||
|---|---|---|---|
| Input voltage | 90V - 240V AC +/-10% @ 50Hz 1 | 90V - 240V AC +/-10% @ 50Hz1 | |
| Current consumption (Mains) | 250mA | 250mA | |
| Battery charger current output | 1.8A @ 27.4V +/-1% | 1.8A @ 27.4V +/-1% | |
| Maximum number of operations per day | 750 3, 6 | 750 3, 6 | |
| Duty cycle - Mains present2, 3 | 45% | 25% | |
| Motor voltage | 24V DC | 24V DC | |
| Motor power supply | Battery-driven (Standard Capacity - 2x 12V 7.2Ah) | Battery-driven (Standard Capacity - 2x 12V 7.2Ah) | |
| Current consumption (motor at rated load) | 8A | 10A | |
| Input / Output sink currents (Max accessory current draw) | |||
| I/O 1-4 | 100mA (12/24V) | 100mA (12/24V) | |
| I/O 5 and 6 | 3A (12/24V) 10sec Pulse | 3A (12/24V) 10sec Pulse | |
| Motor push force - starting | 40Kgf | 24Kgf | |
| Motor push force - rated | 30Kgf | 18kgf | |
| Gate mass - maximum | 1000Kg | 250kg8 | |
| Gate length - maximum | 50m | 50m | |
| Gate speed (varies with load)4 | Up to 26m/min4 | Up to 45m/min8 | |
| Manual Override | Lockable with key release | Lockable with key release | |
| Drive Pinion | 17T Module 4 | 20T Module 4 | |
| Operations in standby with 2x 7Ah batteries | Power saving (15m/min 15kgf) Normal (26m/min 15kgf) | Power saving (15m/min 9kgf) Normal (45m/min 9kgf) | |
| Half day2, 5, 6 | 118 | 63 | 189 | 130 | |
| Full day2, 5, 6 | 93 | 50 | 150 | 104 | |
| Collision Sensing | Electronic | Electronic | |
| Operating temperature range | -15°C to +50°C | -15°C to +50°C | |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete | Code-hopping multichannel receiver with selective add and delete | |
| Receiver code storage capacity | 1500 Remotes7 | 1500 Remotes7 | |
| Receiver frequency | 433.92MHz | 433.92MHz | |
| Degree of protection | IP54 | IP54 | |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 13Kg | 13.5Kg | |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 350mm wide x 282mm deep x 470mm high | 350mm wide x 282mm deep x 470mm high |
- Can operate off a solar supply, consult your local dealer for assistance
- Based on 25°C ambient temperature and unit not in direct sunlight
- Based on a motor push force of less than 50% of rated (Starting and Running forces)
- Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
- Can increase battery capacity for longer standby times
- Based on 4m gate, excluding all accessories
- Multiple buttons per remote can be used
- Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses
